Single Door Access Control System Kit w/ Maglock and Motion Detector

Single Door Access Control System Kit w/ Maglock and Motion Detector

Regular price $1,200.00 USD
Regular price Sale price $1,200.00 USD
Sale Sold out

Manage access to a single door, allowing entry through card swipe or PIN code, and exit through an exit motion sensor triggered by proximity to the door. Comprehensive entry records can be stored, downloaded, and reviewed, with report generation facilitated by professional management software.

Capable of storing up to 20,000 users and 100,000 logs, the system offers automated opening and closing at user-defined times throughout the day. It supports customized access control, dictating who can enter the door at specific times, and includes a feature allowing continuous swiping four times to keep the door open. The system utilizes EM-ID cards, boasting a response time of less than 0.2 seconds.

Unlock the door remotely using the smartphone app, compatible with both iOS and Android operating systems. A desktop USB reader simplifies programming and user registration by transferring card numbers into the software. Detailed video guides and wire diagrams facilitate easy installation, enabling a do-it-yourself approach.

Communication is facilitated via TCP/IP network cable, supporting all Windows systems from Win7 to Win11, in both 32-bit and 64-bit versions.

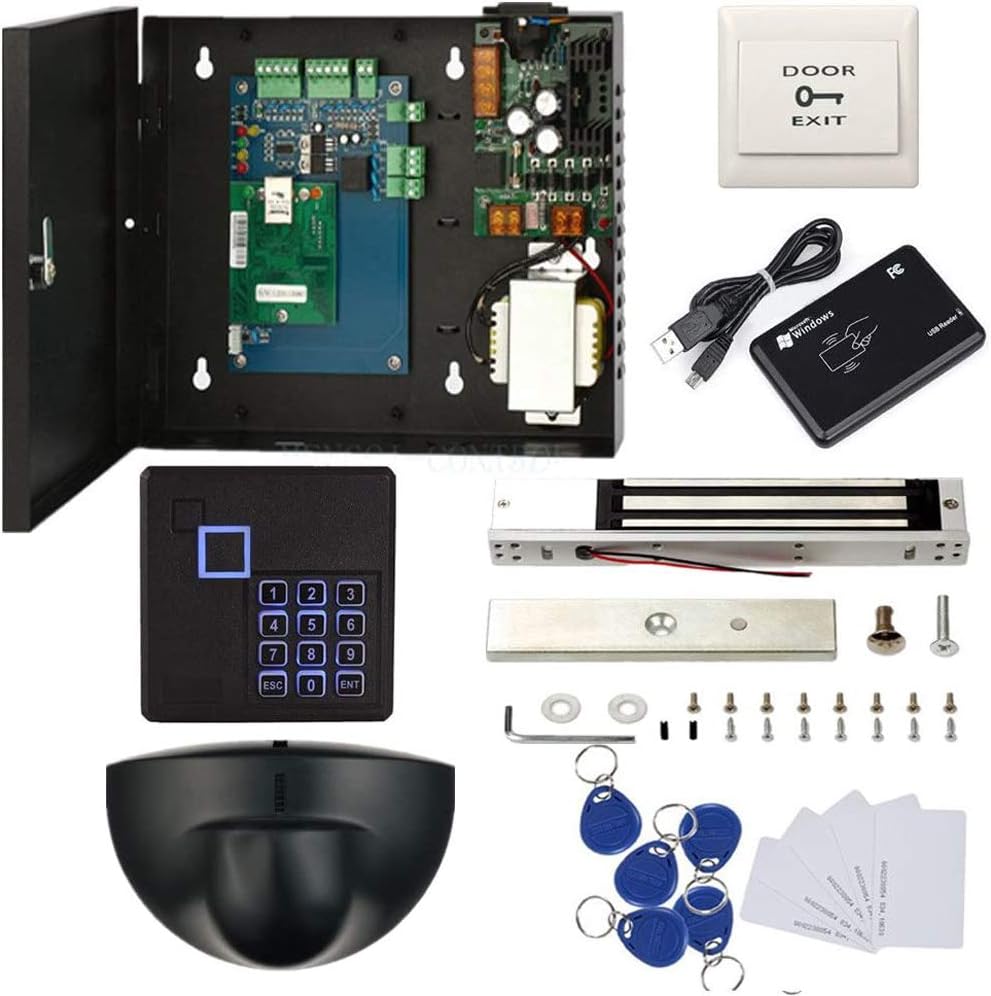

This kit includes:

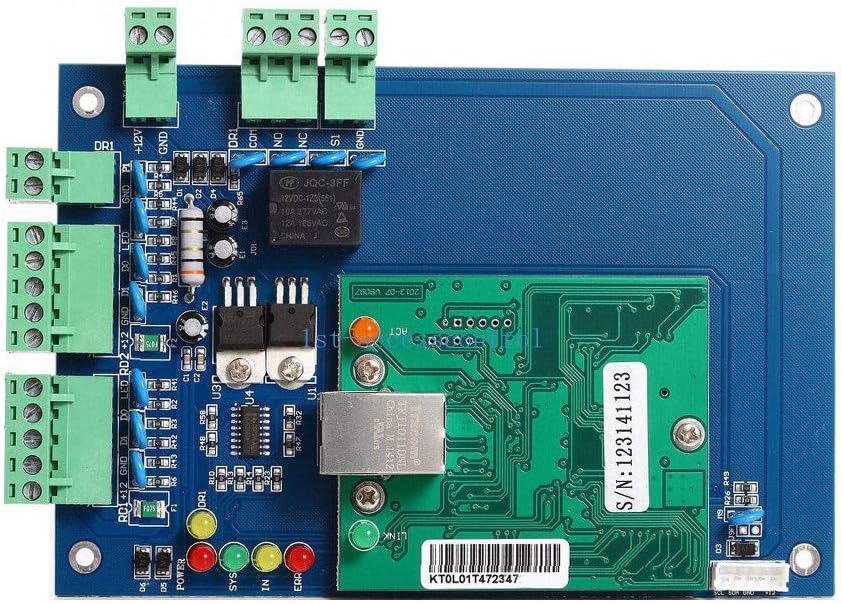

-1 x 1 Door Wiegand Access control Panel

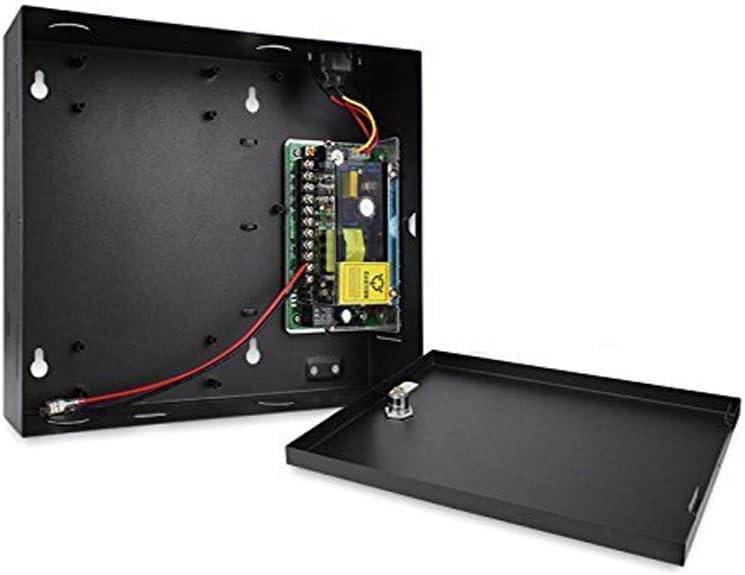

-1 x Power supply Box( 110-240V input, 5A output, to power the whole system, also as cabinet for above control board )

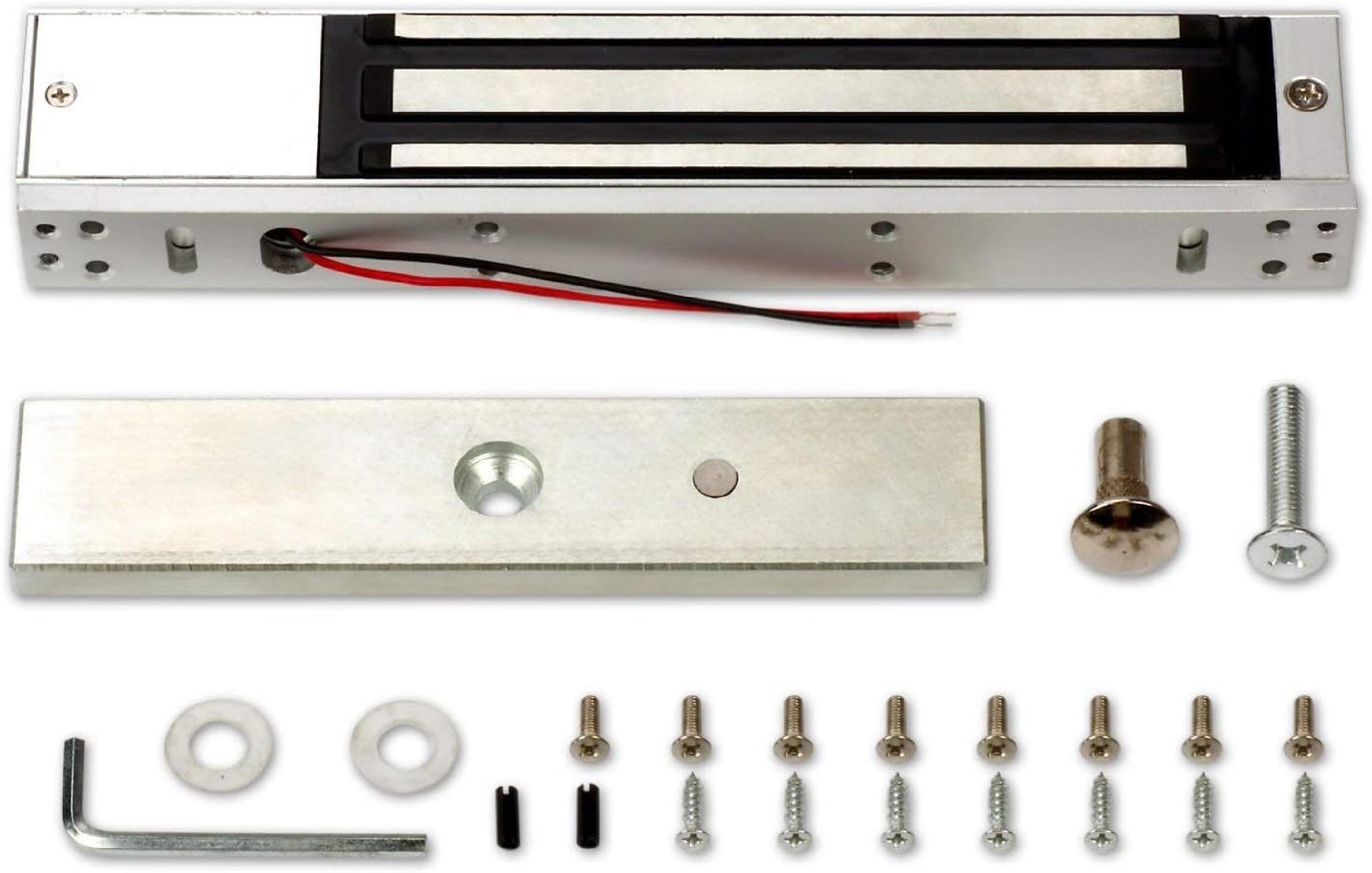

-1 x Electric Magnetic Lock(600lb Force)

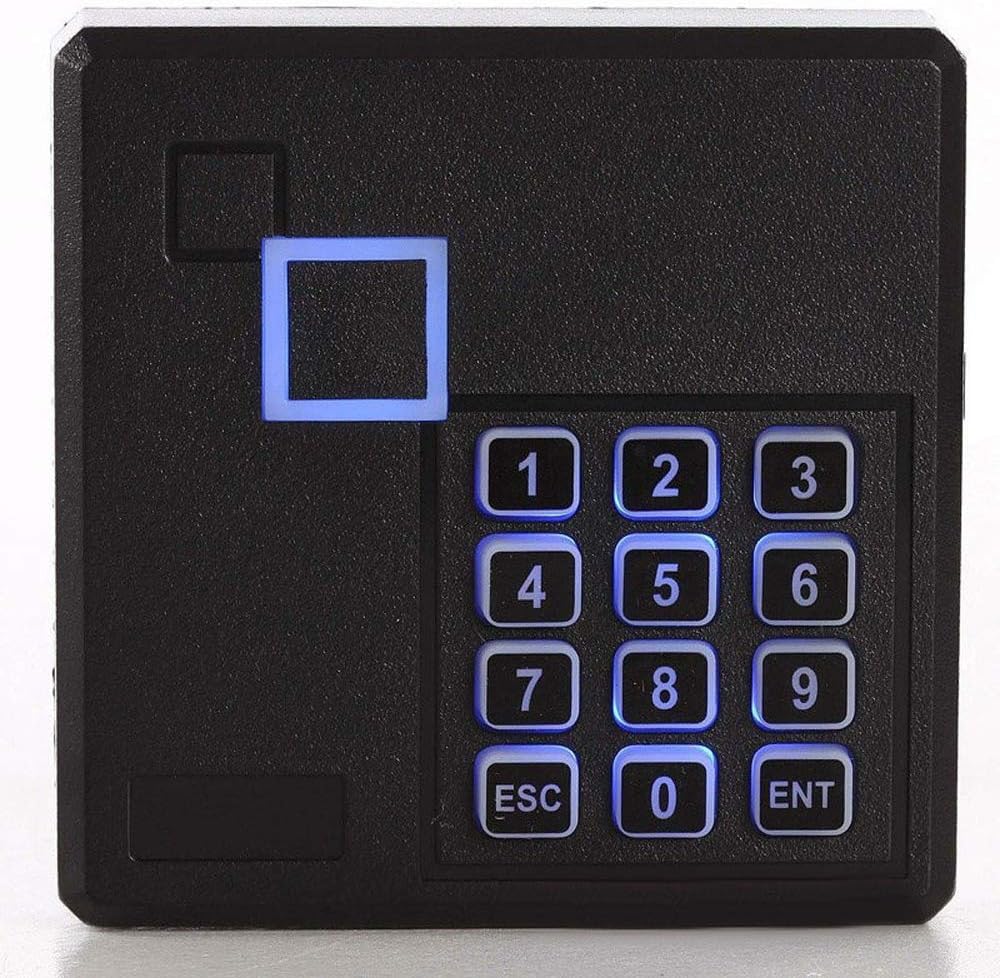

-1 x RFID Keypad Reader

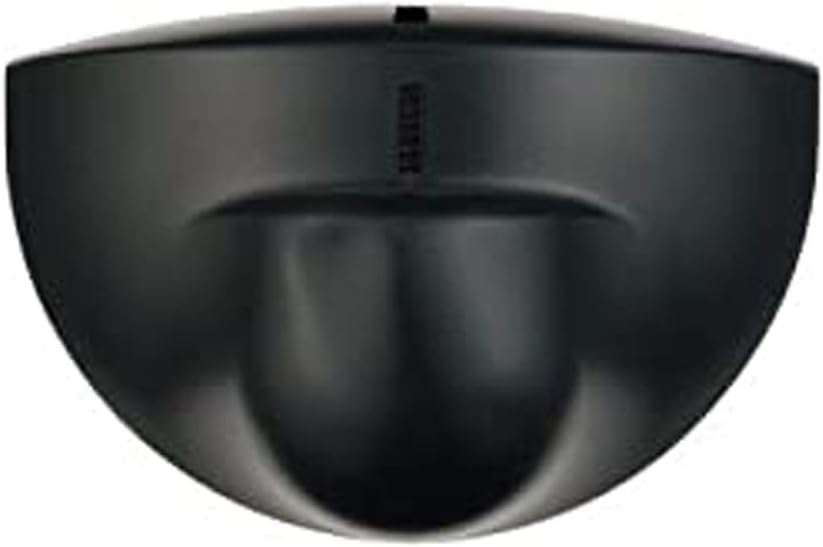

-1 x Exit Motion Sensor

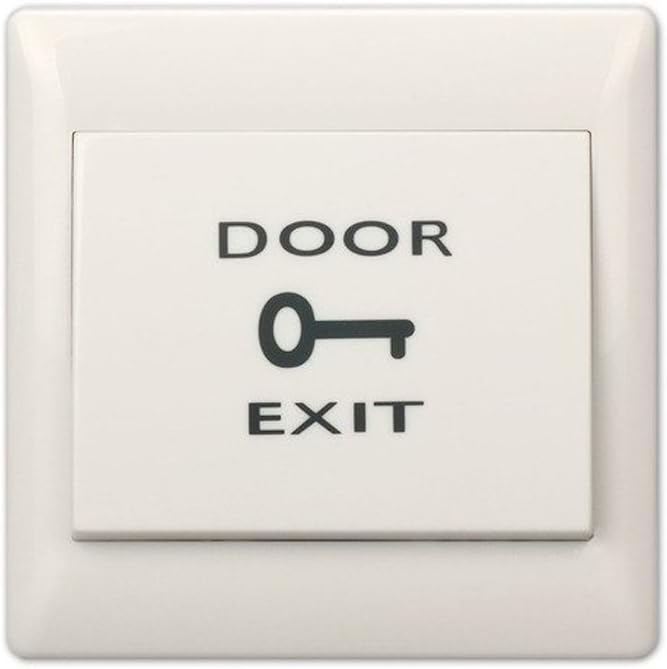

-1 x Push to Exit Button

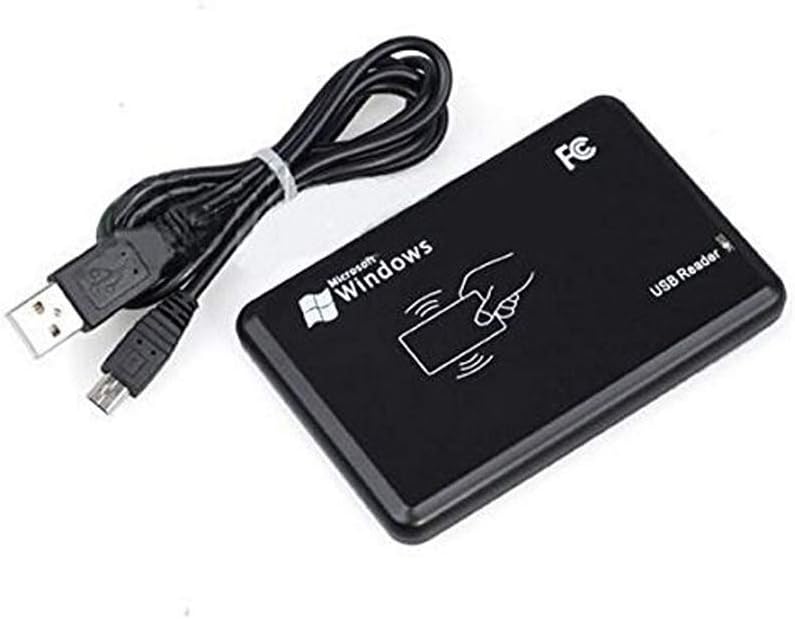

-1 x RFID Enroll USB Reader
-50 x RFID Keychains
-50 x RFID Cards

All instructions included for DIY installation.

View full details
