Single Door Access Control System Kit w/ Electric Strike

This ANSI strike lock is commonly utilized throughout North America, but there are important considerations to bear in mind:

1. It's integrated within the door frame, potentially necessitating the creation of a hole if none exists.
2. It's not compatible with push bars, designed instead for knob locks or mechanical locks with handles.

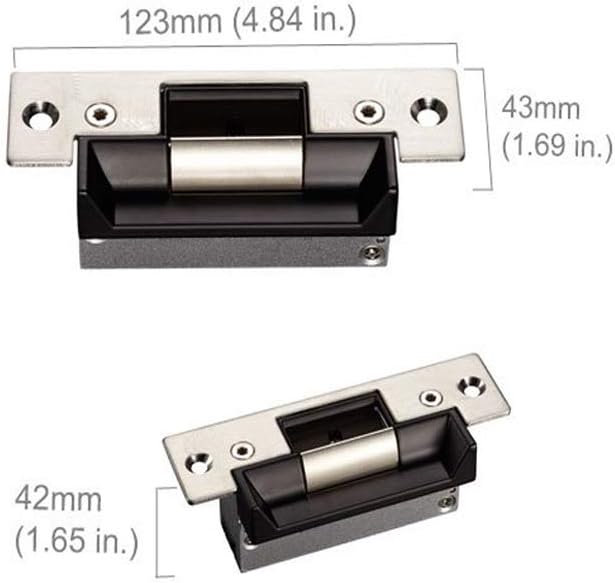

3. Measuring 4.84 inches in length, ensure it suits your door before purchasing.
4. With a holding force of 1000kg, it defaults to a locked position in the event of power failure (Failure Secure mode), though it can be adjusted to Fail Safe mode.
This system manages access for a single door, permitting entry via card swipe or key fob, and exit through a button or by turning the lock handle/knob. It offers storage, retrieval, and analysis of entry records, with reporting capabilities through professional management software. Additionally, it features a smartphone app for remote lock operation (compatible with both iPhone and Android).

Supporting up to 20,000 users and 100,000 records, the system facilitates automated opening and closing according to preset schedules. It enables tailored access control, specifying who can enter the door at particular times, and also supports continuous swiping four times to maintain the door in an open state.

Utilizing EM-ID cards, the system boasts a response time of less than 0.2 seconds and a proximity range of 5-10cm. Its robust and advanced management software offers numerous extended control functions. A desktop USB reader simplifies card registration and programming. Detailed video guides and wire diagrams facilitate easy installation, allowing for a do-it-yourself approach.

With network communication via TCP/IP, the software is compatible with all Windows systems from Win7 to Win11, in both 32-bit and 64-bit versions. Once programming is complete, it operates as a fully standalone system, requiring no network connection or computer hookup.

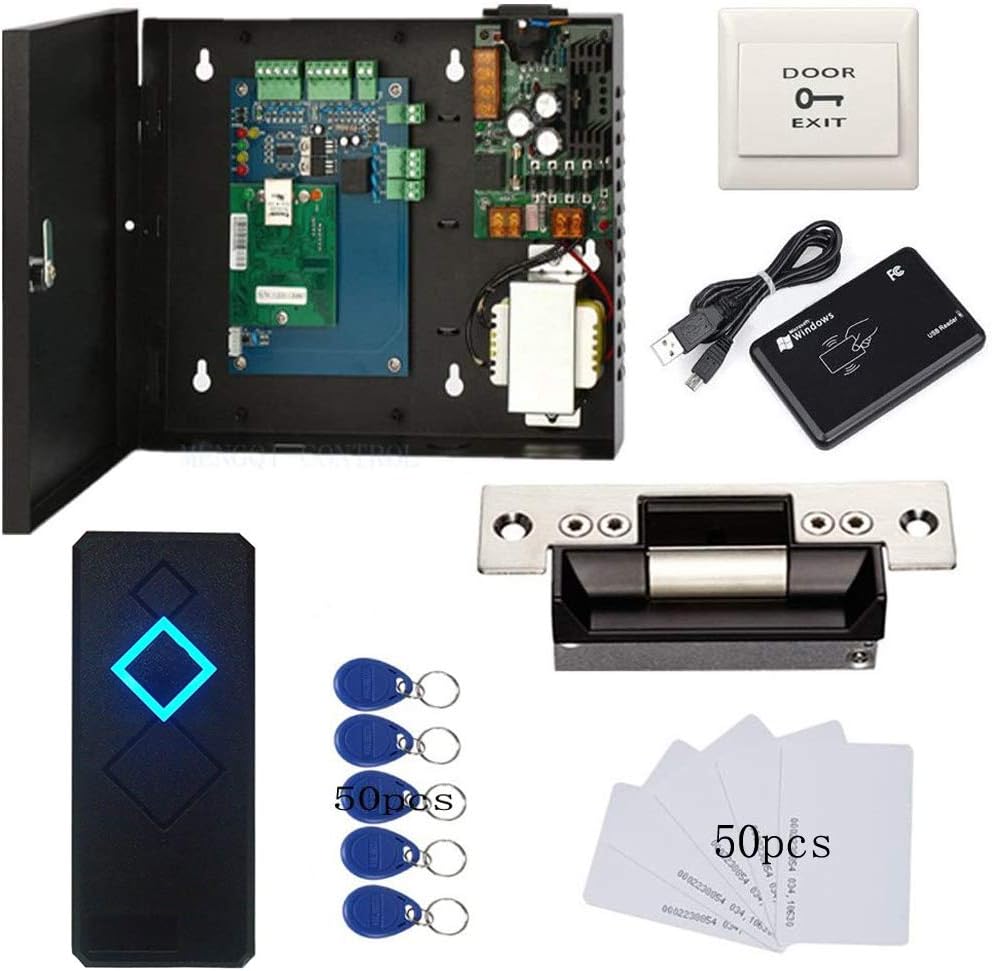

This kit includes:

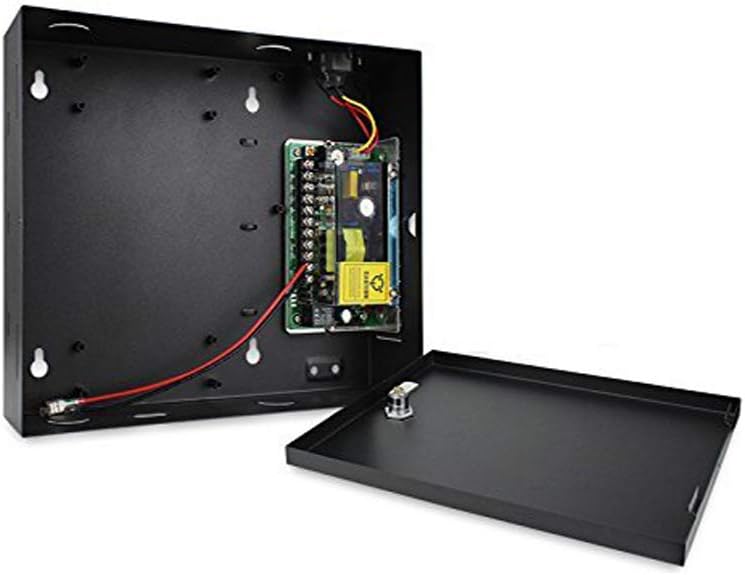

-1pc Power Supply Box( 110-240V input, 5A output, to power the whole system)

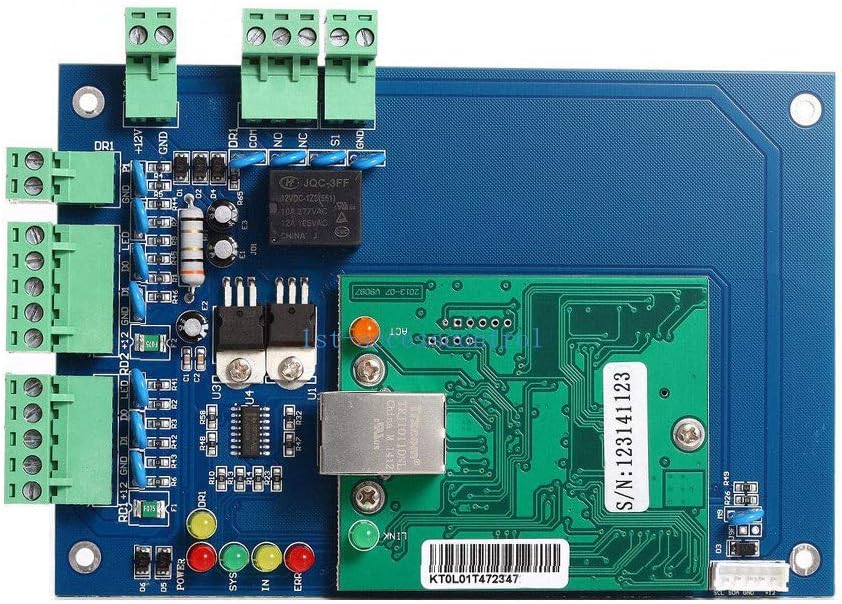

-1pc 1 Door Network Access-Control-Panel-Controller
-1pc ANSI Strike Lock

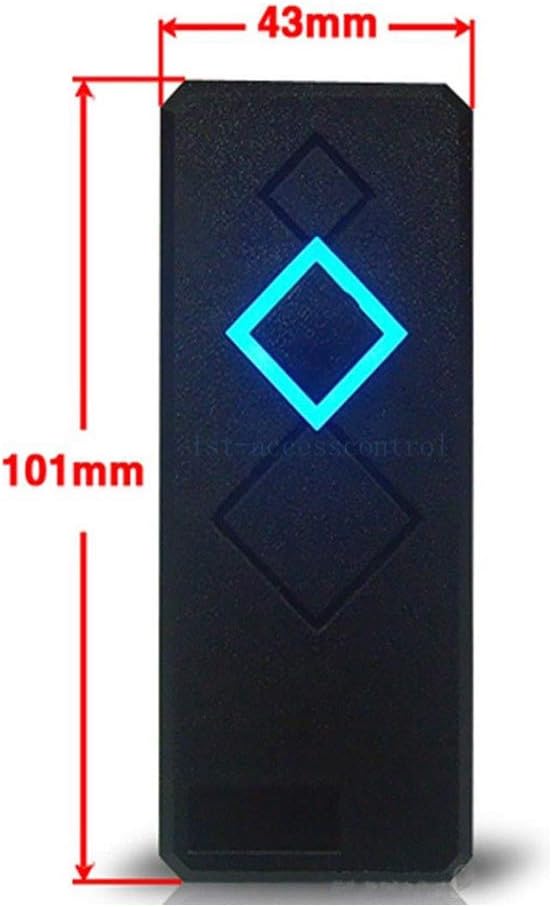

-1pc RFID Reader(Water Proof)

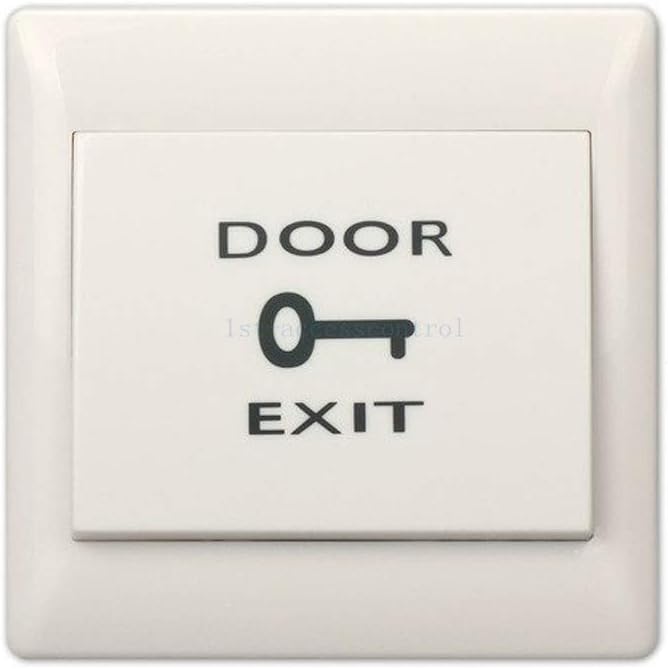

-1pc Push to Exit Button

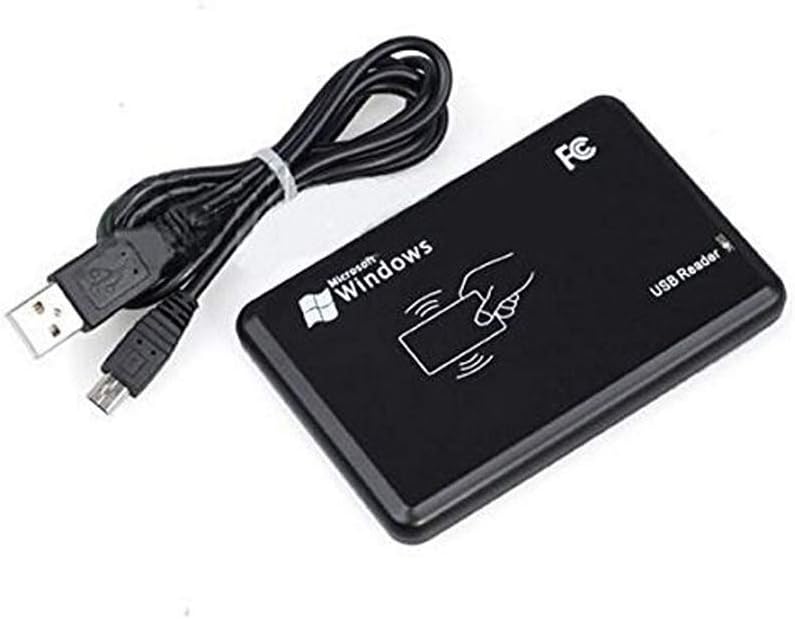

-1 pc Enroll RFID USB Reader
-50pcs RFID Cards

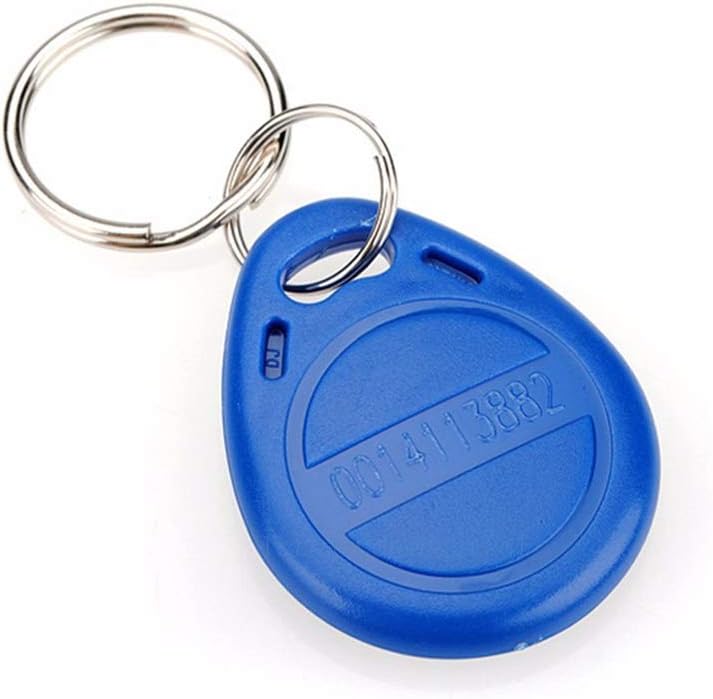

-50pcs RFID Key Fobs

All instructions included for DIY installation.
