2 Door Access Control System Kit w/ Electric Strikes and Keycards

2 Door Access Control System Kit w/ Electric Strikes and Keycards

Regular price $3,500.00 USD
Regular price Sale price $3,500.00 USD
Sale Sold out

Utilizing the ANSI heavy-duty electric door strike lock, a widely embraced solution across North America. Here are some key points to consider before purchasing:

1. Installed within your door frame, it may require cutting if no existing hole is present.
2. Designed specifically for knob locks or mechanical locks with handles, not compatible with push bars.

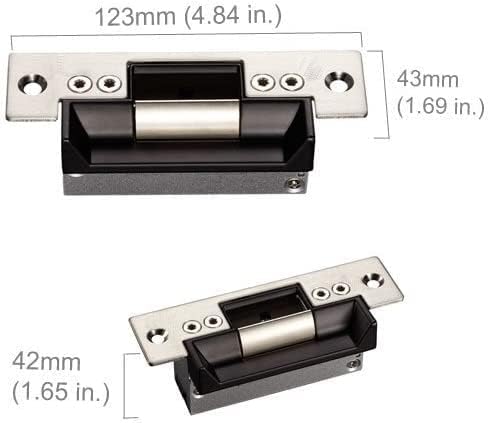

3. Measuring 4.84 inches in length, ensure compatibility with your door before buying.
4. Offering a holding force of 1000kg, it defaults to a locked position in the event of power failure (Fail Secure mode), although it can be adjusted to Fail Safe mode.


Gain entry by swiping a card or entering a password, and exit by turning the lock handle or knob. The system facilitates storage, retrieval, and analysis of entry records, with report generation capabilities provided by professional management software. This software offers robust functionality, including extended control features, while a smartphone app enables remote unlocking. The app is compatible with iOS (iPhone) and Android operating systems.

With a user capacity of up to 20,000 and the ability to store up to 100,000 records, the system supports automated opening and closing according to preset schedules. It also allows for customized access control, determining who can enter the door at specific times.

The outdoor waterproof keypad reader supports card, PIN, and card + PIN entry, utilizing EM-ID cards. With a rapid response time of less than 0.2 seconds and a proximity range of 5-10cm, it ensures efficient operation. A desktop USB reader simplifies programming and user registration, complemented by detailed video guides and wire diagrams for easy DIY installation. Ongoing live support is also available.

Communication is facilitated via TCP/IP network, with software supporting databases such as Access and SQL Server. Compatible with Windows systems from Win7 to Win11, in both 32-bit and 64-bit versions, the system operates as a fully standalone system once programming is complete, requiring no network connection or computer hookup. Please note that Mac systems are not supported.

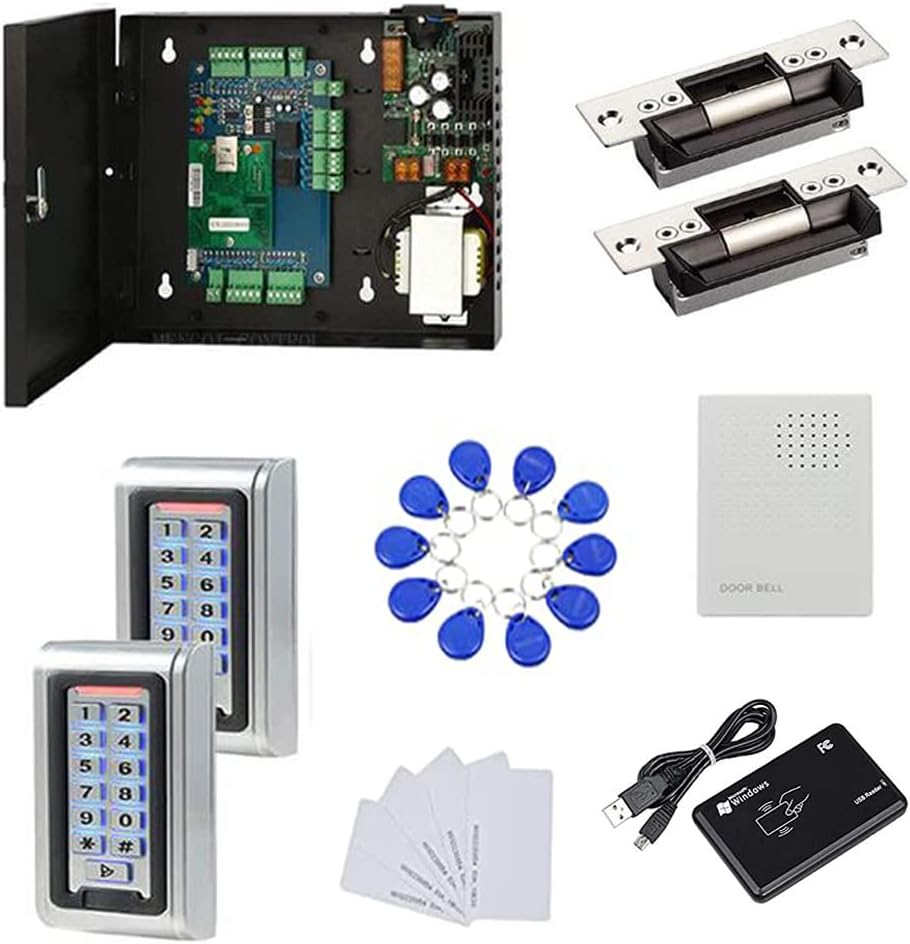

This kit includes:

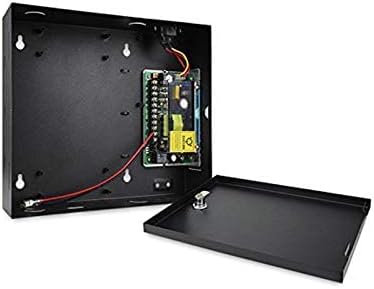

-1 x Power supply Box(110-240V input, 5A output, to power the whole system, also as cabinet for above control board)

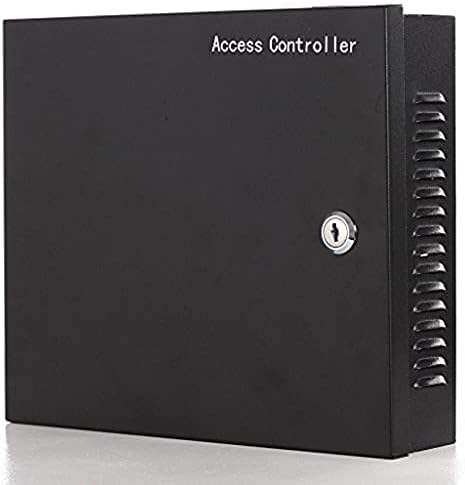

-1 x 2 Door Wiegand Access Controller
-2 x ANSI Strike Lock

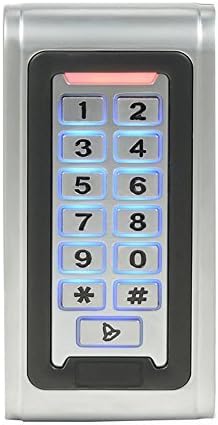

2 x RFID Keypad/PIN Pad Reader(Water proof, support swipe or PIN or card+PIN)
-1 x Wired Door Bell

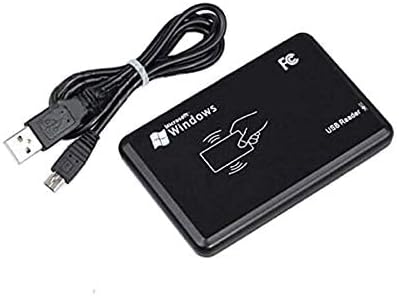

-1 x RFID Enroll USB Reader
-50 x RFID Keychains
-50 x RFID Cards

All instructions included for DIY installation.
