Supervise access to four entrances, allowing entry via card swipe, key fob, PIN input, or a combination of card and PIN. Exit is facilitated by an infrared button. The system enables the storage, retrieval, and scrutiny of entry records, with report generation capabilities through specialized management software. Moreover, the exit button seamlessly integrates with standard US electrical boxes.
Furthermore, the system can accommodate up to 20,000 users and store up to 100,000 logs. It offers automated opening and closing at any predetermined time on any given day, supporting customized access control for designated individuals at specific times.
Utilizing EM-ID cards, the system boasts a response speed of less than 0.2 seconds, while the magnetic lock provides a holding force of 600lbs.
Enhancing convenience, a smartphone application allows remote unlocking. The application is compatible with both iOS and Android operating systems. Additionally, a desktop USB reader facilitates the easy registration of users by reading card numbers into the software. Comprehensive video guides and wiring diagrams simplify installation, enabling a do-it-yourself approach.
For seamless network communication, the system utilizes TCP/IP. The software supports databases such as Access and SQL Server, and is compatible with all Windows systems, including Win7, Win8, Win10, and Win11, in both 32-bit and 64-bit versions.

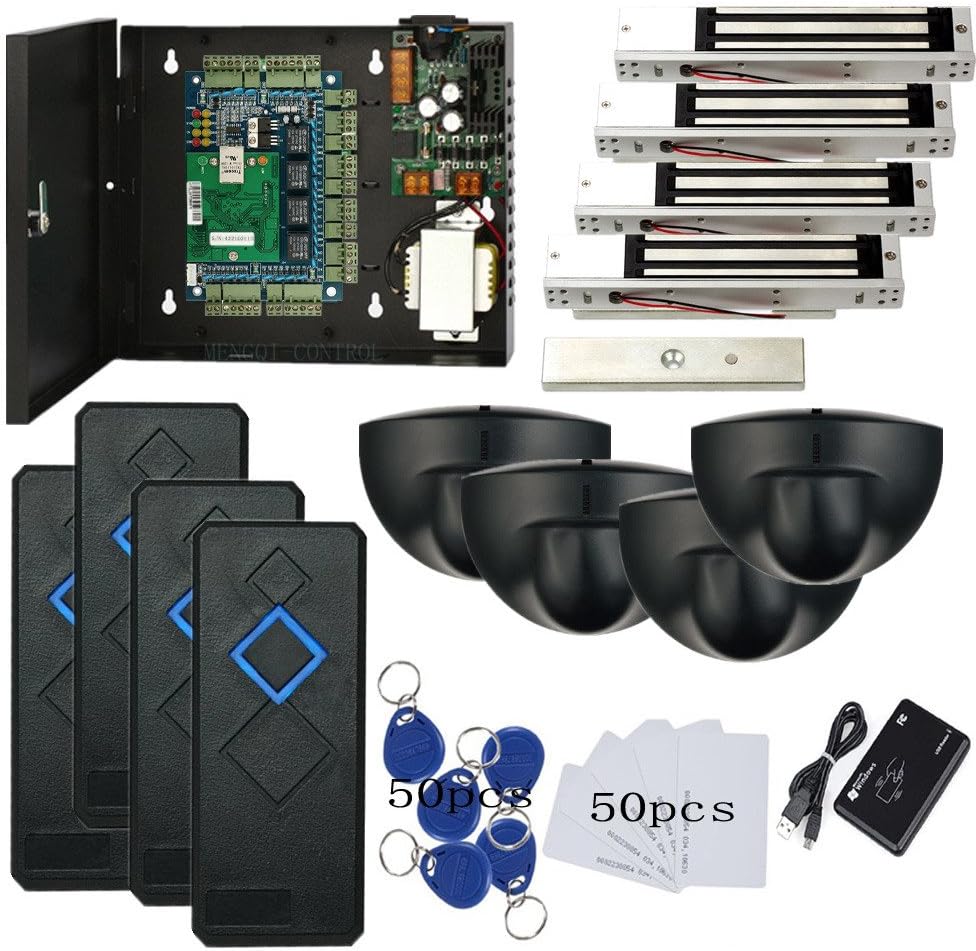

This kit includes:

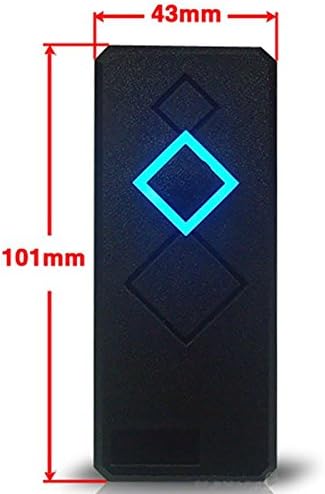

-4pcs RFID Reader(Water Proof)

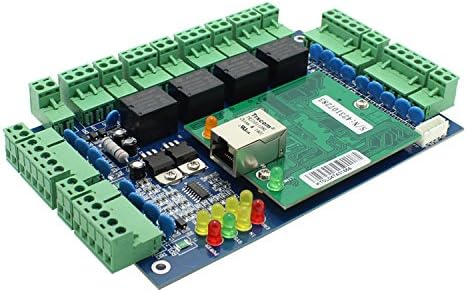

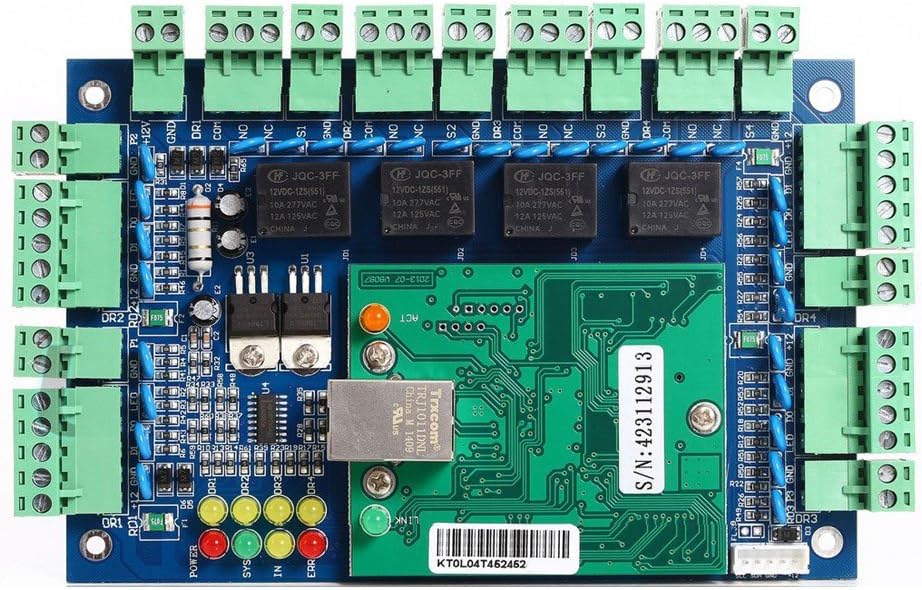

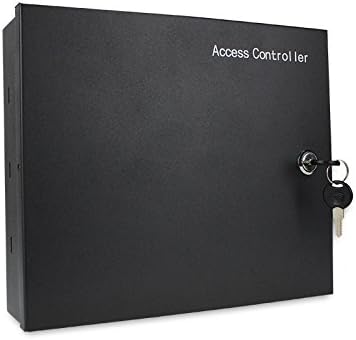

-1pc 4 doors Network Access-Control-Panel

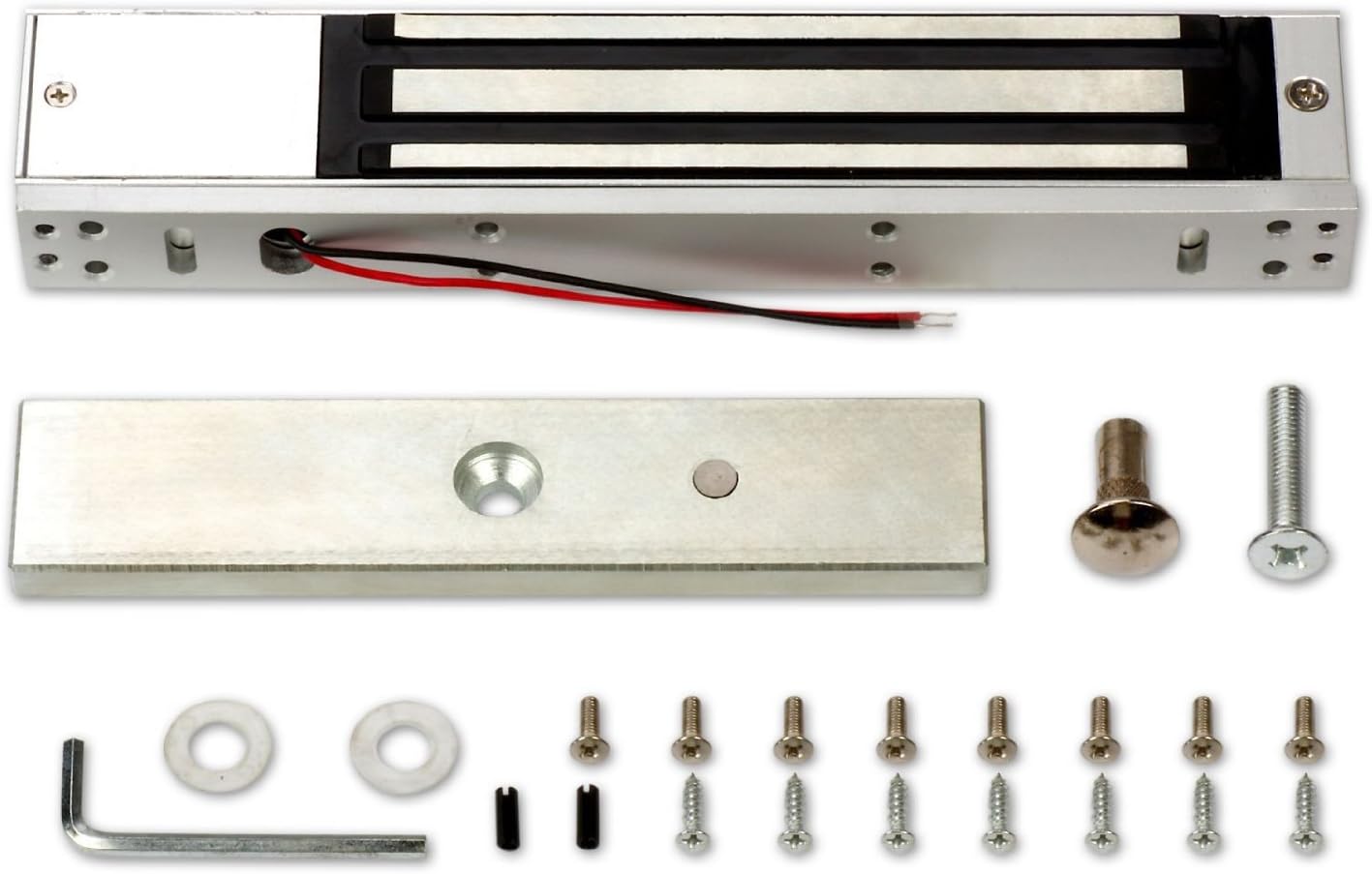

-4pcs Electric Magnetic Lock(600LBS Force)
-1pc Power supply Box( 110-240V input, 5A output, to power on the whole system)

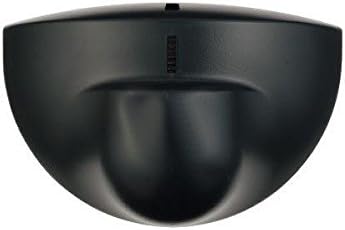

-4pcs Exit Motion Sensor

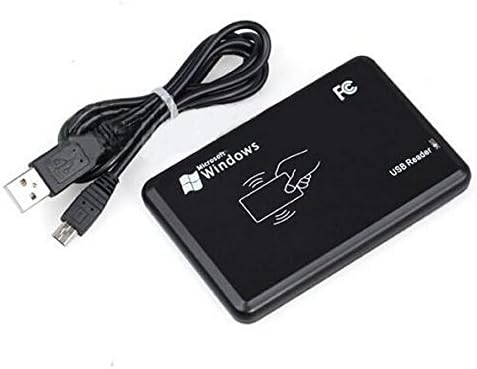

-1pc Enroll RFID USB Reader
-50pcs RFID Key Fobs
-50pcs RFID Card
1pc User manual with Detail Instruction/Wire diagram/Video Guide
All instructions included for DIY installation.
